Fully Automatic Vertical Form Fill Seal Packaging Machine

Model:YD-520

Bag size:L:100mm*420mm W:140mm*250mm

Packaging speed:50bags/min

Power supply and power:AC220V,50~60HZ,3.5KW

Compressed air consumption:6~8Kgf/cm2,0.6m3/min

Dimension:1600mm*1400mm*900mm(L*W*H)

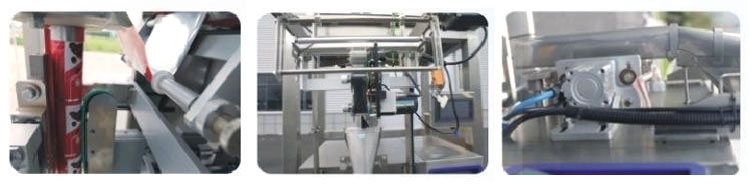

Functions

Adopt intelligent thermostat, accurate temperature control; ensure the sealing of beautiful, smooth.

Product Description

Equipped With Safety Protection To Meet The Requirements of Enterprise Safety Management;

Intelligent Temperature Controller Is Adopted, With Accurate Temperature Control To Ensure Beautiful And Flat Sealing;

PLC  Servo  System, Pneumatic Control System And Super Large Display Touch Screen Are Used To Form The Driving Control Core To Maximize The Control Accuracy, Reliability And Intelligence of The Whole Machine;

The Machine And Metering Configuration Can Automatically Complete The Whole Packaging Process of Metering, Feeding, Filling And Bag Making, Date Printing, Inflation(exhaust) And Finished Product Transportation, And Automatically Complete Counting;

The Touch Screen Can Store The Packaging Process Parameters of A Variety of Different  Products, Which Can Be  Used At Any Time When Changing Products Without Resetting;

It Is Equipped With Guarantee Display System,Which Can Help Eliminate Faults In Time After Faults Occur;

Pillow Bags And Perforated Bags Can Be Made According To Customers' Needs;

Single Belt Film Transportation,Fast And Stable,Low Friction And Low Loss.

Main Technical Parameters
Mode YD-520 (PE/composite film)
Bag size L:100mm*420mm W:140mm*250mm
Packaging speed ≤50 Packet /min
Power supply and power  AC220V,50~60HZ,3.5KW
Compressed air consumption 6-8Kgf/cm²,0.6m³/min
Overall dimension 1600mm*1400mm*900mm(L*W*H)
Applicable Material Range

It is suitable for all kinds of leisure food, meat products,seafood,fruits and vegetables, pickles, chilled meat, medical products, hardware components, medical devices, etc

Powdery
Candy
Flavoring
Snacks
Some Optional Accessories
Metering and Bl anking System
Enhancement System
Material Handling and Conveying System
Belt-Combined-Scale
Flammulinavelutipeshorizontal-Filling-Machine
Combination-Scaleautomatic-Feeder
Liquid-Filler
Horizontal-Mixingfilling-Machine
Braised-Egg-Automoaticfeedert
Liquid-Filling-Machine
Scrod-Filling-Machine
Ring-Feeder
Screw-Dischanrger
Shrinking-Cup-Automaticfeeder
Three-Push-Feeder
Adjustable-Climbing-Hoist
Bowl-Elevator-(Plastic)
Bowl-Elevator-(Stainless-Steel)
Bowl-Elevator-(Plastic)
Powder-Screw-Elevator
Bucket-Storage-Hoist
Scraper-Elevator
Z-Type-Elevator
Tipper-Elevator
Screw-Hoist
Working-Platform
Centrifugal-Disk
Chain-Plate-Conveyor-Belt
Horizontal-Conveyor-Line
Material-Line
Material-Tray
Roller-Conveyor
Stainless-Steel-Conveyor-Belt
S-Type-Conveyor
Vibrating-Feeder
Wheel-Conveyer-Belt
Optional Supporting Equipment
Ink Jet Printer
ELEMOTION innovatively combines triple anti-clogging nozzle technology, intelligent automated control system and high-precision printing functions to create an efficient and stable all-in-one packaging solution.
Laser coding machine [optical fiber]
Adopting waterproof, oilproof and corrosion-resistant structure, integrated intelligent leakage alarm system and high-precision laser coding module, combined with coding clarity auxiliary design.
Laser coding machine [C02]
Innovative integration of compact built-in smoke purification system, intelligent three-state alarm system, energy-efficient maintenance-free laser module and gas-controlled auxiliary coding tooling.
Ink Jet Printer
High-speed and high-precision dynamic inspection system, equipped with intelligent multi-stage rejection system, industrial-grade man-machine interaction terminal, equipped with dual-interface data center.
Laser coding machine [optical fiber]
Adopting all stainless steel material, together with the original phase tracking, product tracking and automatic b alance correction functions, the detection sensitivity and stability is improved. New dual-channel detection, high and l ow-frequency switching and other functions.
Video
Perhaps you have other needs?
In order to ensure that the production fully meets your needs, we also offer a professional packaging customization service

We have a 30-person after-sales team

30-day fast delivery, modular production

One-year warranty, lifetime maintenance
