Automatic High-Speed Thermoforming Vacuum Packaging Machine

Model:DZDL-520

Upper film width:495mmx0.08mm

Lower film width:522mmx0.12-0.21mm

Effective size at work:572mmx484mm

Sealing width:8mm

Yield:3-9 cycles/min

Dimension:7410*1116*1850mm

Scope of application:

It is suitable for all kinds of leisure food, meat products, seafood, fruits and vegetables, pickles, chilled meat, medical products, hardware components, medical devices, etc.

Product Description

The equipment is a full-automatic stretch film vacuum packaging machine developed and produced by the company's technical R &D team. After long-term market research and improvement and Optimization in combination with customer needs,this equipment has become a stretch film automatic packaging equipment with good stability and usability in the current market.The equipment can complete the workflow of automatic forming,heat sealing and cutting;It can be equipped with automatic code printing or automatic code spraying system to truly realize automatic stretch film vacuum packaging.

Controlled by Fuji programmable controller,Fuji frequency conversion speed and color touch screen greatly shorten the operation response time and make the system run more accurate,smooth , stable and durable; And all safety shields are equipped with magnetic switching devices to better ensure the personal safety of operators.

Main Technical Parameters
Machine mode DZDL-520
Width of upper membrane 495 mm
Lower membrane width 522 mm
Vacuum degree ≤200Pa
Air pressure 0.6~0.8Mpa
Air flow 1.0m³/min
Power Supply 380V/50HZ
Average power =7.5~8.5kw
Packaging speed 3-9 Cycles/min (detemined according to prodtuct characteristics and feeding speed)
Effective size 484*572mm
Sealing form Airbag /cylinder
Weight of complete machine ≈2000kg
Overall dimensions 7410mm^1116mm*1850mm(L*W*H)
Applicable Material Range

Automatic High-Speed Thermoforming Vacuum Packaging Machine is suitable for all kinds of leisure food, meat products, seafood, fruits and vegetables, pickles, chilled meat, medical products, hardware components,medical devices, etc.

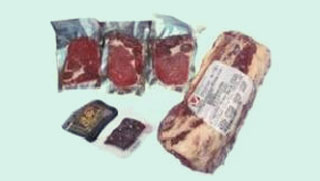

Meat product
Medical supplies

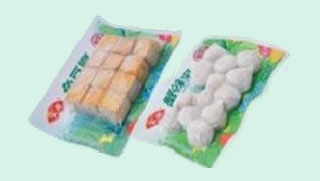

Snacks

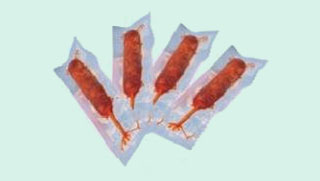

Seafood
Some Optional Accessories
Metering and Bl anking System
Enhancement System
Material Handling and Conveying System
Belt-Combined-Scale
Flammulinavelutipeshorizontal-Filling-Machine
Combination-Scaleautomatic-Feeder
Liquid-Filler
Horizontal-Mixingfilling-Machine
Braised-Egg-Automoaticfeedert
Liquid-Filling-Machine
Scrod-Filling-Machine
Ring-Feeder
Screw-Dischanrger
Shrinking-Cup-Automaticfeeder
Three-Push-Feeder
Adjustable-Climbing-Hoist
Bowl-Elevator-(Plastic)
Bowl-Elevator-(Stainless-Steel)
Bowl-Elevator-(Plastic)
Powder-Screw-Elevator
Bucket-Storage-Hoist
Scraper-Elevator
Z-Type-Elevator
Tipper-Elevator
Screw-Hoist
Working-Platform
Centrifugal-Disk
Chain-Plate-Conveyor-Belt
Horizontal-Conveyor-Line
Material-Line
Material-Tray
Roller-Conveyor
Stainless-Steel-Conveyor-Belt
S-Type-Conveyor
Vibrating-Feeder
Wheel-Conveyer-Belt
Optional Supporting Equipment
Ink Jet Printer
ELEMOTION innovatively combines triple anti-clogging nozzle technology, intelligent automated control system and high-precision printing functions to create an efficient and stable all-in-one packaging solution.
Laser coding machine [optical fiber]
Adopting waterproof, oilproof and corrosion-resistant structure, integrated intelligent leakage alarm system and high-precision laser coding module, combined with coding clarity auxiliary design.
Laser coding machine [C02]
Innovative integration of compact built-in smoke purification system, intelligent three-state alarm system, energy-efficient maintenance-free laser module and gas-controlled auxiliary coding tooling.
Ink Jet Printer
High-speed and high-precision dynamic inspection system, equipped with intelligent multi-stage rejection system, industrial-grade man-machine interaction terminal, equipped with dual-interface data center.
Laser coding machine [optical fiber]
Adopting all stainless steel material, together with the original phase tracking, product tracking and automatic b alance correction functions, the detection sensitivity and stability is improved. New dual-channel detection, high and l ow-frequency switching and other functions.
Video
Perhaps you have other needs?
In order to ensure that the production fully meets your needs, we also offer a professional packaging customization service

We have a 30-person after-sales team

30-day fast delivery, modular production

One-year warranty, lifetime maintenance
